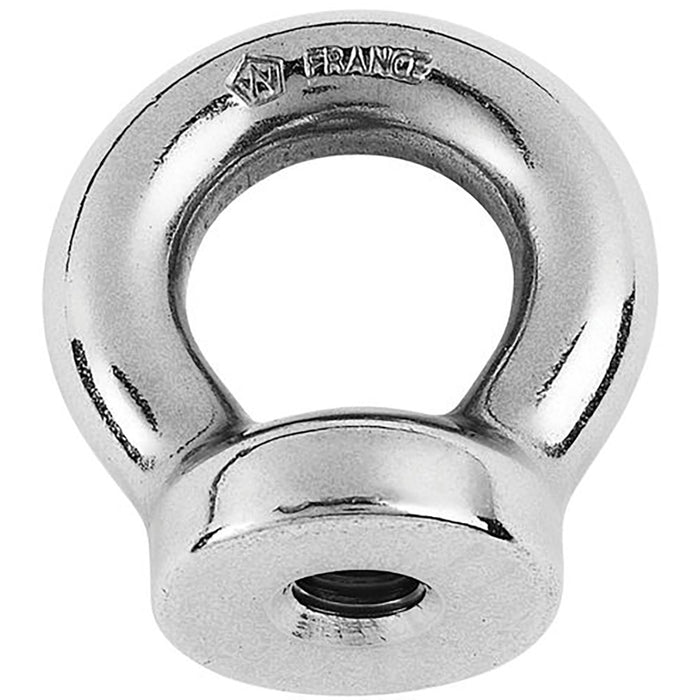

6mm Eye Nut - 1/2" Diameter
Features:
- A complete range of single-piece forged products for fastenings applications
- Outstanding breaking loads
- Available in different sizes
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.049 / (g) 22

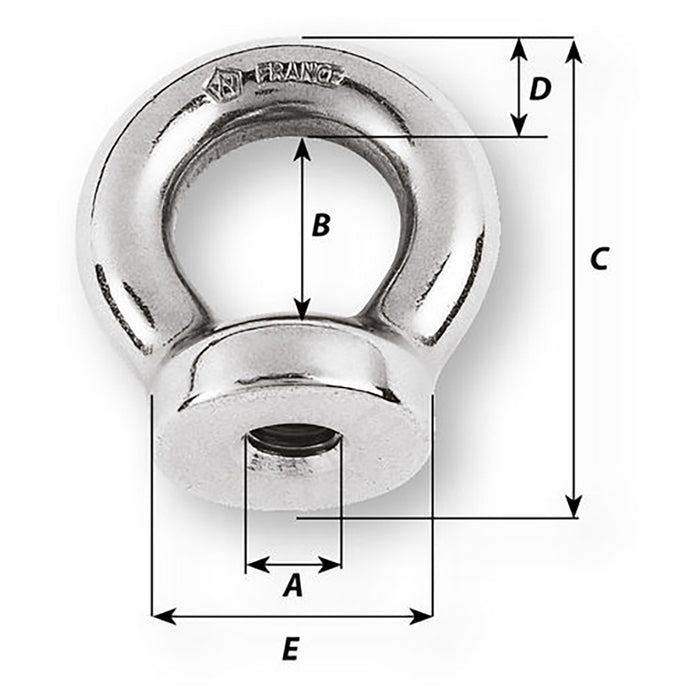

Dimensions:
- A: (inch) M6 x 100 / (mm) M6 x 100
- B: (inch) 33/64" / (mm) 13
- C: (inch) 1 1/16" / (mm) 27
- D: (inch) 15/64" / (mm) 6
- E: (inch) 43/64" / (mm) 17
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
