Wichard 10mm Eye Nut - Thread M12 x 175mm [06356]

Original price $60.30 - Original price $60.30
Original price
$60.30
$60.30 - $60.30
Current price $60.30

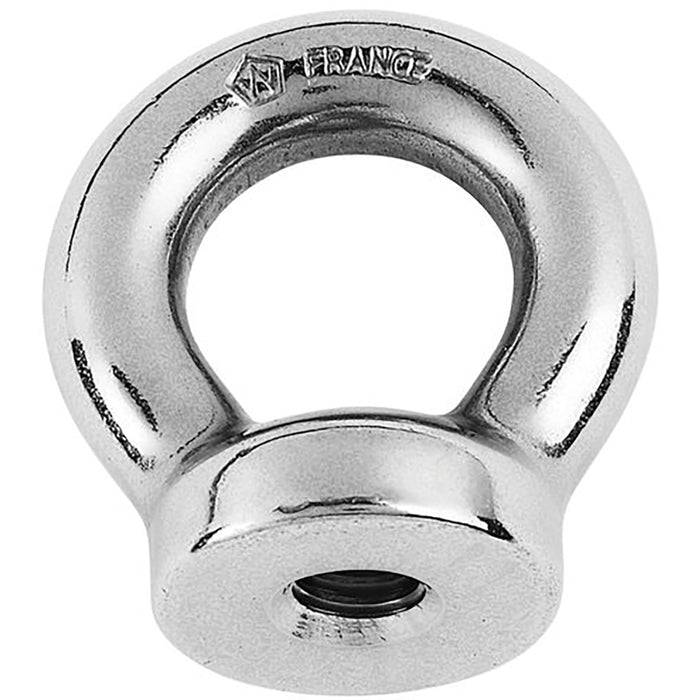

10mm Eye Nut - Thread M12 x 175mm

Features:

  • A complete range of single-piece forged products for fastenings applications
  • Outstanding breaking loads
  • Available in different sizes

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 11460 / (kg) 5200
  • Weight: (lb) 0.209 / (g) 95

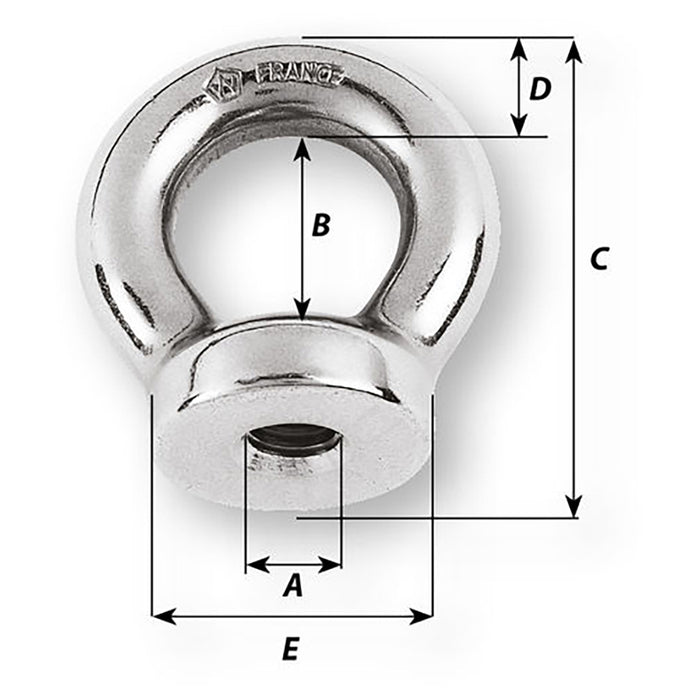

Dimensions:

  • A: (mm) M12 x 175
  • B: (inch) 55/64" / (mm) 22
  • C: (inch) 1 13/16" / (mm) 46
  • D: (inch) 25/64" / (mm) 10
  • E: (inch) 1 7/64" / (mm) 28

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
