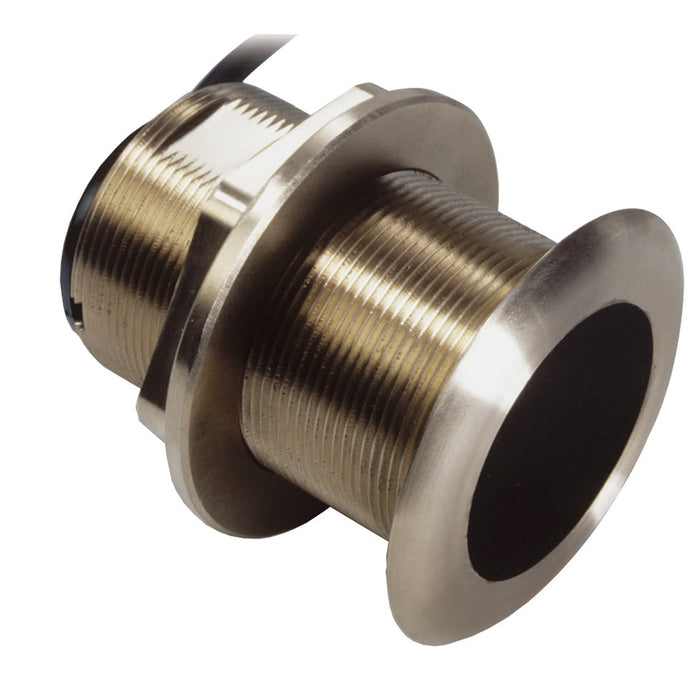

Furuno B60-20, 20 Degree Tilted Element Transducer [525T-LTD/20]

by Furuno
Sold out
Original price $275.00 - Original price $275.00
Original price
$275.00
$275.00 - $275.00
Current price $275.00

B60 Tilted Element™ 20° Furuno 10 pin connector

20° titled version is designed for 16° - 24° deadrise angles


The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Mounting Style: Thru-Hull
  • Temperature: Yes
  • Speed Included: No
  • Box Dimensions: 6"H x 8"W x 9"L WT: 4.6 lbs
  • UPC: 6116793079346

Owner's Manual (pdf)
Brochure (pdf)
